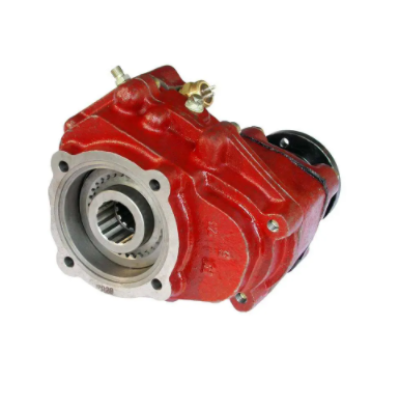

ALLOY STEEL TRUCK PARTS BY SAND CASTING AND CNC MACHINING

ALLOY STEEL TRUCK PARTS BY SAND CASTING AND CNC MACHINING

ALLOY STEEL TRUCK PARTS BY SAND CASTING AND CNC MACHINING
CategoriesALLOY STEEL CNC MACHINING PARTS
BrandOBT
Casting MetalsCast Alloy Steel
Casting ManufacturingSand Casting + CNC Machining + Assembly
Available Surface TreatmentPainting, Anodizing, Passivation,Electroplating
ApplicationTruck Spare Parts
Update Time2022/8/15
Detail Information

Sand casting is a tranditional but also modern casting process. It uses green sand (moist sand) or dry sand to form the molding systems. The green sand casting is the oldes casting process used in history. When making the mold, the patterns made of wood or metal should be produced in order to form the hollow cavity. The molten metal then pour into the cavity to form the castings after cooling and solidification. Sand casting is less expensive than other casting processes both for mold development and unit casting part. The sand casting, always mean the green sand casting (if no special description). However, nowadays, the other casting processes are also use the sand to make the mold. They have their own names, such as shell mold casting, furan resin coated sand casting (no bake type), lost foam casting and vacuum casting.

The Advantages of Sand Casting:
✔ Lower Cost due to its cheap and recyclable mold materials and simple production equipment.
✔ Wide range of unit weight from 0.10 kg to 500 kgs or even bigger.
✔ Various Structure from simple type to complex type.
✔ Suitable for production requirements of various quantity.



Sand Casting Capabilities at OBT Foundry
DescriptionMolding by handMolding by Automatic Machines
Max size of Castings1,500 mm × 1000 mm × 500 mm1,000 mm × 800 mm × 500 mm
Casting Weight Range0.5 kg - 1,000 kg0.5 kg - 500 kg
Annual Capacity5,000 tons - 6,000 tons8,000 tons - 10,000 tons
Casting ToleranceOn Request or Standard (ISO8062-2013 or GB/T 6414-1999)
Molding MaterialsGreen Sand, Resin Coated Sand
Casting Metal & AlloysGray Iron, Ductile Iron, Cast Steel, Stainless Steel, Al Alloys, Brass, Bronze...etc.



Tolerance That Sand Castings Achieve:
The casting tolerances are divided into Dimensional Casting Tolerances (DCT) and Geometrical Casting Tolerances (GCT). Our foundry would like to talk with you if you have special request on the required tolerances. Here in the following are the general tolerances grade we could reach by our green sand casting, shell mould casting and no-bake furan resin sand casting:
✔ DCT Grade by Green Sand Casting: CTG10 ~ CTG13
✔ DCT Grade by Shell Mold Casting or Furan Resin Sand Casting: CTG8 ~ CTG12
✔ GCT Grade by Green Sand Casting: CTG6 ~ CTG8
✔ GCT Grade by Shell Mold Casting or Furan Resin Sand Casting: CTG4 ~ CTG7



Metal & Alloys Grade for Sand Casting Processes
Metal & AlloysPopular Grade
Gray Cast IronGG10~GG40; GJL-100 ~ GJL-350;
Ductile (Nodualar) Cast IronGGG40 ~ GGG80; GJS-400-18, GJS-40-15, GJS-450-10, GJS-500-7, GJS-600-3, GJS-700-2, GJS-800-2
Austempered Ductile Iron (ADI)EN-GJS-800-8, EN-GJS-1000-5, EN-GJS-1200-2
Carbon SteelC20, C25, C30, C45
Alloy Steel20Mn, 45Mn, ZG20Cr, 40Cr,   20Mn5, 16CrMo4, 42CrMo,
40CrV, 20CrNiMo, GCr15, 9Mn2V
Stainless SteelFerritic Stainless Steel, Martensitic Stainless Steel, Austenitic Stainless Steel, Precipitation Hardening Stainless Steel, Duplex Stainless Steel
Aluminium AlloysASTM A356, ASTM A413,  ASTM A360
Brass / Copper-based AlloysC21000, C23000, C27000, C34500, C37710, C86500,  C87600, C87400, C87800,  C52100, C51100
Standard: ASTM, SAE, AISI, GOST, DIN, EN, ISO, and GB
Sand Casting Equipment at RMC Foundry
Sand castings of cast iron

Custom Sand Castings of Cast Iron
