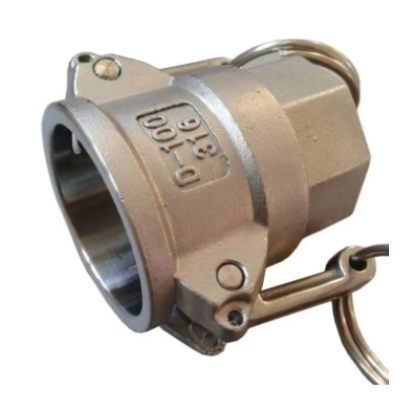

AISI 316 STAINLESS STEEL CAMLOCK BY INVESTMENT CASTING AND MACHINING

AISI 316 STAINLESS STEEL CAMLOCK BY INVESTMENT CASTING AND MACHINING

AISI 316 STAINLESS STEEL CAMLOCK BY INVESTMENT CASTING AND MACHINING
CategoriesSTAINLESS STEEL CNC MACHINING
BrandOBT
Casting MetalsStainless Steel AISI 316 / CF8M
Casting ManufacturingInvestment Casting + CNC Machining
ApplicationCamlock
Heat TreatmentAnnealing + Solution
Update TimeNovember 28,2022
Detail Information

China OEM custom or standard stainless steel camlock by lost wax investment casting process.

Stainless steel has a minimum chromium content of 10.5%, making it more resistant to corrosive liquid environments and to oxidation. However, this is not absolute. Stainless steel investment castings are "corrosion-resistant" when used in liquid environments and vapors below 1200°F (650°C) and "heat-resistant" when used above this temperature. AISI 316 is an austenitic stainless steel which is widely used for investment castings.

Capabilities of Investment Casting Foundry:
• Max Size: 1,000 mm × 800 mm × 500 mm
• Weight Range: 0.5 kg - 100 kg
• Annual Capacity: 2,000 tons
• Bond Materials for Shell Building: Silica Sol, Water Glass and their mixtures.
• Tolerances: On Request.

Advantages of Investment Casting Components:
- Excellent and smooth surface finish
- Tight dimensional tolerances.
- Complex and intricate shapes with design flexibility
- Capability to cast thin walls therefore a lighter casting component
- Wide selection of cast metals and alloys (ferrous and non-ferrous)
- Draft is not required in the molds design.
- Reduce the need for secondary machining.
- Low material waste.



Materials for Investment Casting Process at RMC Foundry
CategoryChina GradeUS GradeGermany Grade
Ferritic Stainless Steel1Cr17, 022Cr12, 10Cr17, 430, 431, 446, CA-15, CA6N, CA6NM1.4000, 1.4005, 1.4008, 1.4016, GX22CrNi17, GX4CrNi13-4
Martensitic Stainless Steel1Cr13, 2Cr13, 3Cr13, 4Cr13, 410, 420, 430, 440B, 440C1.4021, 1.4027, 1.4028, 1.4057, 1.4059, 1.4104, 1.4112, 1.4116, 1.4120, 1.4122, 1.4125
Austenitic stainless steel06Cr19Ni10, 022Cr19Ni10,
06Cr25Ni20, 022Cr17Ni12Mo2, 03Cr18Ni16Mo5
302, 303, 304, 304L, 316, 316L,   329, CF3, CF3M, CF8, CF8M, CN7M, CN3MN1.3960, 1.4301, 1.4305, 1.4306, 1.4308, 1.4313, 1.4321, 1.4401, 1.4403, 1.4404, 1.4405, 1.4406, 1.4408, 1.4409, 1.4435, 1.4436, 1.4539, 1.4550, 1.4552, 1.4581,
1.4582, 1.4584,
Precipitation Hardening Stainless Steel05Cr15Ni5Cu4Nb, 05Cr17Ni4Cu4Nb630, 634, 17-4PH, 15-5PH,  CB7Cu-11.4542
Duplex Stainless Steel022Cr22Ni5Mo3N, 022Cr25Ni6Mo2NA 890 1C, A 890 1A, A 890 3A, A 890 4A, A 890 5A,
A 995 1B, A 995 4A, A 995 5A, 2205, 2507
1.4460, 1.4462, 1.4468, 1.4469, 1.4517, 1.4770
High Mn SteelZGMn13-1, ZGMn13-3, ZGMn13-5B2, B3, B41.3802, 1.3966, 1.3301, 1.3302
Tool SteelCr12A5, H12, S51.2344, 1.3343, 1.4528, GXCrMo17,   X210Cr13, GX162CrMoV12
Heat Resistant Steel20Cr25Ni20, 16Cr23Ni13,
45Cr14Ni14W2Mo
309, 310, CK20, CH20, HK301.4826, 1.4828, 1.4855, 1.4865
Nickle-base Alloy HASTELLY-C, HASTELLY-X,  SUPPER22H, CW-2M, CW-6M, CW-12MW, CX-2MW, HX(66Ni-17Cr), MRE-2, NA-22H, NW-22,  M30C, M-35-1, INCOLOY600,
INCOLOY625
2.4815, 2.4879, 2.4680
Aluminum
Alloy
ZL101, ZL102, ZL104ASTM A356, ASTM A413,  ASTM A360G-AlSi7Mg, G-Al12
Copper AlloyH96, H85, H65, HPb63-3,
HPb59-1, QSn6.5-0.1, QSn7-0.2
C21000, C23000, C27000, C34500, C37710, C86500,  C87600, C87400, C87800,  C52100, C51100CuZn5, CuZn15, CuZn35, CuZn36Pb3, CuZn40Pb2, CuSn10P1, CuSn5ZnPb, CuSn5Zn5Pb5
Cobalt-base Alloy UMC50, 670, Grade 312.4778




INVESTMENT CASTING TOLERANCES
InchesMillimeters
DimensionToleranceDimensionTolerance
Up to 0.500±.004"Up to 12.0± 0.10mm
0.500 to 1.000”±.006"12.0 to 25.0± 0.15mm
1.000 to 1.500”±.008"25.0 to 37.0± 0.20mm
1.500 to 2.000”±.010"37.0 to 50.0± 0.25mm
2.000  to 2.500”±.012"50.0 to 62.0± 0.30mm
2.500 to 3.500”±.014"62.0 to 87.0± 0.35mm
3.500 to 5.000”±.017"87.0 to 125.0± 0.40mm
5.000 to 7.500”±.020"125.0 to190.0± 0.50mm
7.500 to 10.000”±.022"190.0 to 250.0± 0.57mm
10.000 to 12.500”±.025"250.0 to 312.0± 0.60mm
12.500 to 15.000±.028"312.0 to 375.0± 0.70mm
lost wax casting process-1
lost wax casting process-2
stainless steel casting valve and pump parts

Stainless Steel Castings by Investment Casting
