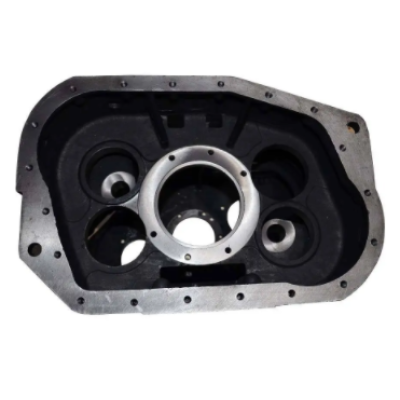

ALLOY STEEL LOST FOAM CASTING PRODUCT

ALLOY STEEL LOST FOAM CASTING PRODUCT

ALLOY STEEL LOST FOAM CASTING PRODUCT
CategoriesALLOY STEEL LOST FOAM CASTINGS
BrandOBT
MaterialAlloy Steel, Cast Steel
Casting ProcessLost Foam Casting + CNC Machining
Update TimeNovember 28,2022
Detail Information

Lost Foam Casting refers to the casting method that combines foam patterns with dry sand molding. The molten metal directly fills and replaces the space occupied by the original plastic mold, and directly obtains the required casting after cooling. The foam pattern is directly vaporized during the metal casting process, so the lost foam casting does not require mold removal. At most lost foam casting foundries, the commonly used pattern material is polystyrene.

The Steps of Lost Foam Casting:
1- Use foam molds to produce foam patterns and casting gating systems
2- Bond the patterns and runners to form a mold bundle module
3- Dip paint on the module
4- Dry the paint
5- Put the module into the sand box and fill it with dry sand
6- Vibrate molding in order to fill the cavity with dry sand and then compact the molding sand
7- Pouring molten metal to vaporize the foam and then forming the desired castings
8- After the castings have cooled, clean the castings. The dry sand can be recycled

Advantages of Lost Foam Casting:
1- Lost foam casting is a near-net shape casting method. The dimensional tolerance of the casting can reach CT6~CT9, and the surface roughness is Ra=6.3~50 μm. The shape of lost foam castings can be comparable to resin sand castings.
2- Lost foam casting can produce castings with complex shapes and complex cavities. Compared with the resin sand process, the more sand cores are replaced, the greater the profit margin of lost foam casting. The core competitiveness of lost foam casting is the production of difficult castings with complex inner cavities, such as engine block, engine head and box, etc. These characteristics make the superiority and economic benefits of lost foam casting fully appear, and realize the lightweight and precise casting.
3- Lost foam casting does not require mold removal, which provides greater freedom for casting design and casting process. In terms of process design, the lost foam casting process is first broken into parts and then spliced ​​into a whole, and then the lost foam process is used for integral casting, so that the lost foam casting has the competitive advantage with the traditional sand casting.
4- The use of lost foam casting process can greatly reduce labor intensity, reduce the generation of solid waste, and the used dry sand can be recycled. This feature meets the requirements of energy saving and emission reduction, and has changed the harsh environment of traditional sand casting.

ItemLost Foam CastingVacuum Casting
Suitable CastingsSmall and medium-sized castings with complex cavities, such as engine block, engine coverMedium and large castings with few or no cavities, such as cast iron counterweights, cast steel axle housings
Patterns and PlatesFoam patterns made by moldingsTemplate with suction box
Sand BoxBottom or five sides exhaustFour sides exhaust or with exhaust pipe
Plastic FilmThe top cover is sealed by plastic filmsAll sides of both halves of sand box are sealed by plastic films
Coating MaterialsWater-based paint with thick coatingAlcohol-based paint with thin coating
Molding SandCoarse dry sandFine dry sand
Vibration Molding3 D VibrationVertical or Horizontal Vibration
PouringNegative PouringNegative Pouring
Sand ProcessRelieve negative pressure, turn over the box to drop sand, and the sand is then reusedRelieve negative pressure, then the dry sand falls into the screen, and the sand is recycled
