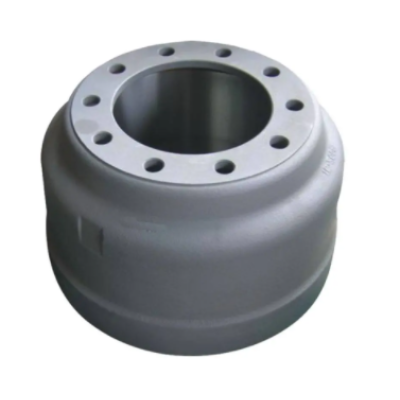

STEEL LOST FOAM CASTING PRODUCTS

STEEL LOST FOAM CASTING PRODUCTS

STEEL LOST FOAM CASTING PRODUCTS
CategoriesALLOY STEEL LOST FOAM CASTINGS
BrandOBT casting part Manufacturer
Casting MaterialAlloy Steel
Casting ProcessLost Foam Casting ( Full Mold Casting )
SurfaceSand Blasting + Painting
Update TimeMarch 28,2023
Detail Information

Steel lost foam casting products could be made by according to the drawings and requirements with quick production and competitive prices. Lost foam casting is a near-net forming process, suitable for the production of more precise castings of various sizes with complex structures and unlimited alloys, especially for large and thick-wall castings.

During lost foam casting process, the sand is not bonded and a foam pattern is used to form the shape of the desired metal parts. The foam pattern is "invested" into the sand at the Fill & Compact process station allowing the sand into all voids and supporting the foam patterns external form. The sand is introduced into the flask containing the casting cluster and compacted to ensure all voids and sapes are supported.

▶ Raw Materials Available for Lost Foam Casting (LFC):
• Aluminium Alloys.
• Carbon Steel: Low carbon, medium carbon and high carbon steel from AISI 1020 to AISI 1060.
• Cast Steel Alloys: ZG20SiMn, ZG30SiMn, ZG30CrMo, ZG35CrMo, ZG35SiMn, ZG35CrMnSi, ZG40Mn, ZG40Cr, ZG42Cr, ZG42CrMo...etc on request.
• Stainless Steel: AISI 304, AISI 304L, AISI 316, AISI 316L and other stainless steel grade.
• Brass & Copper.
• Other Materials and Standards on request

▶ Capabilities of Lost Foam Casting
• Max Size: 1,000 mm × 800 mm × 500 mm
• Weight Range: 0.5 kg - 100 kg
• Annual Capacity: 2,000 tons
• Tolerances: On Request.

▶ Main Production Procedure
• Mold foam pattern making.
• Age pattern to allow dimensional shrinkage.
• Assemble pattern into a tree
• Build cluster (multiple patterns per cluster).
• Coat cluster.
• Foam pattern coating.
• Compact cluster in flask.
• Pour molten metal.
• Extract cluster from flasks.



lost foam patterns for valve body
China lost foam casting company
