ALLOY STEEL CASTING BY SAND MOLD CASTING

ALLOY STEEL CASTING BY SAND MOLD CASTING

ALLOY STEEL CASTING BY SAND MOLD CASTING
CategoriesAlloy Steel Sand Casting
BrandOBT
Casting MetalsAlloy Steel, CrMo Alloy Steel, High Mn Steel
Casting ManufacturingSand Mold Casting

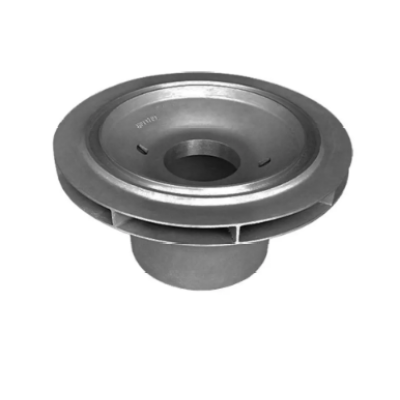

ApplicationClosed Impeller
Surface TreatmentCustomized
Heat TreatmentAnnealing, Quenching + Tempering
Update TimeDecember 7,2022
Detail Information

China OEM custom alloy steel shell mold casting products.

Shell molding casting process is also called pre-coated resin sand casting process, hot shell molding castings or core casting process. The main molding material is the pre-coated phenolic resin sand, which is more expensive than green sand and furan resin sand. Moreover, this sand can not be recycle used.

Resin Coated Sand Casting Metal and Alloys



Metal & AlloysPopular Grade
Gray Cast IronGG10~GG40; GJL-100 ~ GJL-350;
Ductile (Nodular) Cast IronGGG40 ~ GGG80; GJS-400-18, GJS-40-15, GJS-450-10, GJS-500-7, GJS-600-3, GJS-700-2, GJS-800-2
Austempered Ductile Iron (ADI)EN-GJS-800-8, EN-GJS-1000-5, EN-GJS-1200-2
Carbon SteelC20, C25, C30, C45
Alloy Steel20Mn, 45Mn, ZG20Cr, 40Cr,   20Mn5, 16CrMo4, 42CrMo,
40CrV, 20CrNiMo, GCr15, 9Mn2V
Stainless SteelFerritic Stainless Steel, Martensitic Stainless Steel, Austenitic Stainless Steel, Precipitation Hardening Stainless Steel, Duplex Stainless Steel
Aluminium AlloysASTM A356, ASTM A413,  ASTM A360
Brass / Copper-based AlloysC21000, C23000, C27000, C34500, C37710, C86500,  C87600, C87400, C87800,  C52100, C51100
Standard: ASTM, SAE, AISI, GOST, DIN, EN, ISO, and GB



The Advantages of Furan Resin Coated Sand Self-hardening Molding Casting:
1) Improve the dimensional accuracy of castings and the surface roughness.
2) The hardening of the mold (core) sand does not require drying, which can save energy, and inexpensive wood or plastic core boxes and templates can also be used.
3) Self-hardnening molding sand is easy to compact and collapse, easy to clean up castings, and old sand can be recycled and reused, which greatly reduces the labor intensity of core making, modeling, sand falling, cleaning and other links, and it is easy to realize mechanization or automation.
4) The mass fraction of resin in sand is only 0.8%~2.0%, and the comprehensive cost of raw materials is low.

Because the self-hardening method has many of the above-mentioned unique advantages, the self-hardening method is not only used for core making, but also used for casting moulding. It is especially suitable for single piece and small batch production, and can produce cast iron, cast steel and non-ferrous alloy castings. Some Chinese foundries have completely replaced clay dry sand molds, cement sand molds, and partially replaced water glass sand molds.



Cast Alloy Steel Comparison from Different Countries



No.ChinaJapanKoreaU.S.A.GermanyFranceRussia
GBJISKSASTMUNSDINW-Nr.NFгост
1ZG40MnSCMn3SCMn3--GS-40Mn51.1168--
2ZG40Cr-------40Xл
3ZG20SiMnSCW480 (SCW49)SCW480LCCJ02505GS-20Mn51.112G20M620гсл
4ZG35SiMnSCSiMn2SCSiMn2--GS-37MnSi51.5122-35гсл
5ZG35CrMoSCCrM3SCCrM3-J13048GS-34CrMo41.722G35CrMo435XMл
6ZG35CrMnSiSCMnCr3SCMnCr3-----35Xгсл



custom shell mold casting product

Shell Mould Castings

ductile iron casting products

Custom Shell Casting Products
