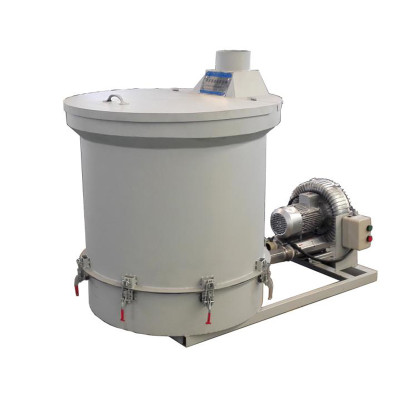

investment casting machinery shell machine sand floating machine

investment casting machinery shell machine sand floating machine

investment casting machinery shell machine sand floating machine
CategoriesCasting machine
AlbumView larger image
BrandOBT
ModelOBT-80
Update Time2020-10-29
Detail Information
1. Fan aeration fan to make sand particles suspend evenly;
2. The suspended height of the sand particles is adjusted indirectly by using the air intake of the fan to adjust the air volume, which makes the air volume control sensitive. The fan is not easy to overload or work at a lower pressure, so that the sand floating machine can prolong its life and reduce noise while saving energy;
3. The side of the sand bucket is equipped with a side-top dust suction port to improve the working environment through dust removal;
4. The box type quick buckle combination method is convenient for disassembly, which can quickly replace the screen and clean up debris and improve efficiency;
5. Adopting a new design structure, which greatly reduces the power of the equipment; it is half the power consumption of the old-fashioned surface sand floater.
Model
OBT80
Barrel diameter
Φ800mm
Barrel depth
600mm
Power
2.2kw
Dimensions
1500*900*1150mm
